ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

Place of Origin : Shenzhen zhuhai

Brand Name : TAC OEM & ODM

Certification : MSDS REACH ROHS

Model Number : ICR10280 3.7V 200mAh

MOQ : 500 pcs for single cell , 50pack for battery packs

Price : usd 1.0-2.0

Packaging Details : meet UN38.3 Certification

Delivery Time : 7-10 days after order confirm for stock model

Payment Terms : 100% prepaid before shipping out

Supply Ability : 100000PCS EACH WEEK

Chemistry : li-ion battery

capacity : 200 mah

voltage : 3.7-4.2v

lifecycle : 500 times

warranty : 12 months

size : 10*28mm

Contact Now


ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life


The Feature of ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life


1. Model Name: 3.7V ICR10280 200mAh
2. High quality and the long cycle life.
3. CE/Rohs certification
3. Good price from factory direcly

Specification for ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

200mAh

Standard discharge(0.2C5A) after Standard charge

Minimum

150mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2V

5

Internal Impedance

≤120mΩ

Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.2C5A
Constant Voltage 4.2V

7

Standard discharge

Constant current 0.2C5A
end voltage 3.0V

8

Fast charge

Constant Current 1.0C5A
Constant Voltage 4.2V
0.01 C5A cut-off

9

Fast discharge

Constant current 1.0C5A
end voltage 3.0V

10

Maximum Continuous Charge Current

1.0 C5A

11

Maximum Continuous Discharge Current

1.5 C5A

12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Bare Cell

Discharge: -10~60℃

13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.
at the shipment state

less than 3 months: -20~40℃

Less than 7 day : -20~65℃

14

Cell Dimension

High:Max28.3 mm

Initial Dimension

Diameter:Max10.2 mm

Applictaion

the battery can be used for various Electric power tool and meter equipment


Pictures:

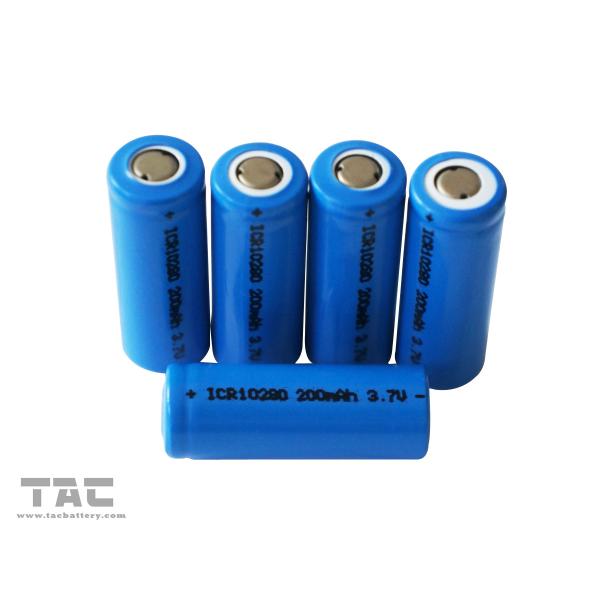

3.7V Lithium ion Cylindrical Battery ICR10280 200mAh

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

Packing Detail

The battery backed with paper inner box and standard export carton

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

Lithium-ion Singlce Cell Model List

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life

Tac Battery Production Line

ICR10280 Lithium Ion Cylindrical Battery 3.7V 200mAh Long Cycle Life
